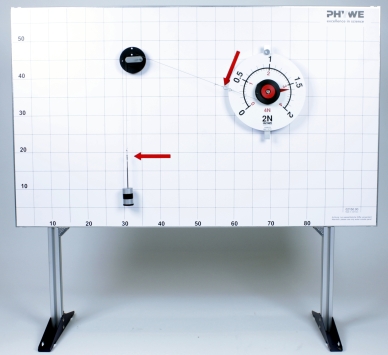

Wheel and axle

Article no: P1254100

Principle

Investigate the conditions under which equilibrium exists on a wheel and axle.

In addition, investigate the correlation between the forces , the distances and the radii on the wheel and axle.

Benefits

Optimised for demonstration experiments: Transformation from horizontal into vertical direction
Very good visibility: Big devices on uniform background
Strong Magnets (at least 10 N) allow a safe mounting and therefore a very easy handling
Demonstrative measurement of forces with large circular dynamometers with a fixing magnet and ball-bearing pulley with two cord grooves for two measuring ranges
Colored arrows enhancing observations and explanations

PHYWE Demo Physics board with stand	02150-00	1
Axle on fixing magnet	02151-04	1
Torsion dynamometer	03069-03	1
Scale for demonstration board	02153-00	1
Pointers f. Demonst.Board, 4 pcs	02154-01	1
Weight holder, 10 g	02204-01	1
Slotted weight, silver bronze, 50 g	02206-03	1
Slotted weight, silver bronze, 50 g	02206-03	2
Wheel and axle	02360-00	1
Fish line, l. 100m	02090-00	1
Marker, black	46402-01	1
