Measurement of current

Article no: P1371800

Principle

A simple circuit is examined to introduce the measurement of the strength of an electric current. It is assumed that the students understand the term current and its unit.

When they know that electric current is defined as the number of freely moving electrons which pass a cross-section of a conductor in a unit of time, they will easily understand that in this case the measuring instrument must be connected in series.

Benefits

No additional cable connections between the building blocks needed - clear arragned and quick setup
Contact saftey due to puzzle blocks system
Corrosion-free gold plated contacts
Doubled earning sucess: Electric circuit diagram on top, real components can be seen unterside

Tasks

How is electric current measured?

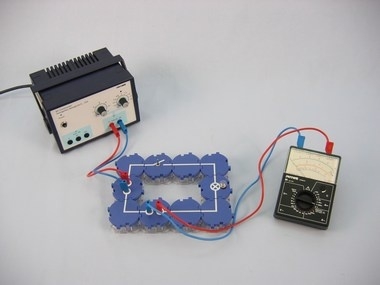

Set up a simple circuit incorporating a filament lamp and familiarise yourself with the way the strength of an electric current is measured.

Scope of delivery

Straight connector module, SB	05601-01	2
Angled connector module, SB	05601-02	4
Interrupted connector module with sockets, SB	05601-04	2
On-off switch module, SB	05602-01	1
Socket module for incandescent lamp E10, SB	05604-00	1
Connecting cable, 32 A, red, various lengths	07360-01	1
Connecting cable, 32 A, blue, various lengths	07360-04	1
Connecting cable, 32 A, red, various lengths	07361-01	1
Connecting cable, 32 A, blue, various lengths	07361-04	1
Filament lamps 4V/0.04A, E10, 10	06154-03	1
Filament lamp 6 V/3 W, E10, 10 pcs.	35673-03	1
Filament lamps 12V/0.1A, E10, 10 pieces	07505-03	1
PHYWE Analog multimeter, 600V AC/DC, 10A AC/DC, 2 MΩ, overload protection	07021-11	1
PHYWE Power supply, 230 V, DC: 0...12 V, 2 A / AC: 6 V, 12 V, 5 A	13506-93	1
