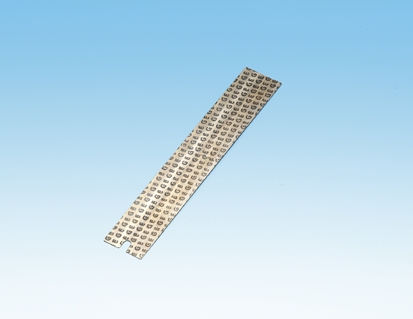

Bimetal strip

Function and Applications

To demonstrate the working principle and application of a bimetal.

Equipment and technical data

• Two welded Fe-Ni strips with different nickel contents.
• With slot to hold e.g. in insulating support.
• Temperature range: - 20 °C...+ 400 °C.
• Bending: approx. 0.45 mm / °C.
• Dimensions (mm): 150 x 25 x 0.3.
