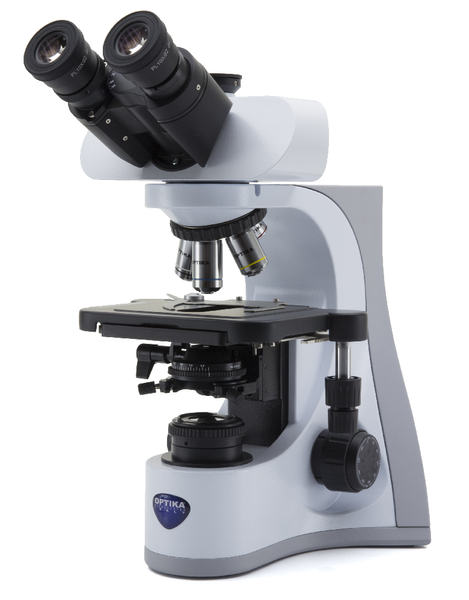

OPTIKA Trinocular brightfield microscope, 1000x, IOS, Full Köhler

Function and Applications

Advanced research and routine laboratory microscope for brightfield observations with IOS W-PLAN objectives and rackless stage. The high-efficiency X-LED3 makes it reliable for all transmitted light observations for great-looking, rich and high-quality view.

Equipment and Technical Data

• Observation mode: Brightfield
• Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating
• Interpupillary distance: Adjustable between 50 and 75 mm
• Dioptric adjustment: On the left eyepiece tube
• Eyepieces: WF10x/22 mm, high eye-point and with rubber cups
• Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings
• Objectives: IOS W-PLAN 4x/0.10 IOS W-PLAN 10x/0.25 IOS W-PLAN 40x/0.65 IOS W-PLAN 100x/1.25 (Oil), all with anti-fungus treatment
• Specimen stage: Double layer rackless mechanical stage, 233x147 mm, 78x54 mm X-Y range
• Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen
• Condenser: Swing-out N.A. 0.2/0.9, with iris diaphragm, focusable and centerable
• Transmitted illumination (Full Koehler type): X-LED3 with white 3.6 W LED (6,300K) with brightness control
• Multi-plug 100-240Vac/6Vdc external power supply
• Dimensions: 42 x 27 x 39 cm
• Weight: 9.1 kg
