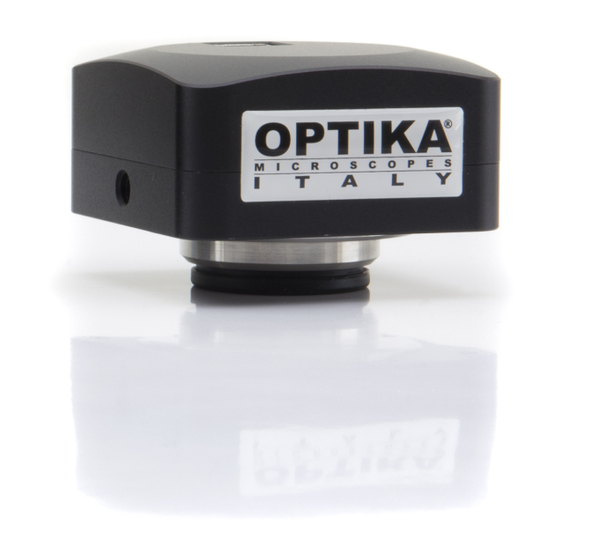

OPTIKA USB Digital Camera 1.3 Mp

Function and Applications

USB 2.0 C-mount and Eyepiece Microscope Camera, 1.3Mp, includes C-mount Adapter.

Equipment and Technical Data

• Digital camera resolution: 1.3 MP (1280 x 1024)
• Signal output: USB 2.0
• Sensor Size: 1/3"
• Sensor technology: CMOS
• Sensor type: Aptina CMOS
• Image format: 5/4
• Pixel size: 3.6 x 3.6 µm
• Frame rate full resolution: 15 fps (1280 x 1024)
• Frame rate other resolutions: 50 fps (320 x 256)
• Sensitivity: 1 V/lux-second
• Signal / noise ratio: 44 dB
• Dynamic range: 71 dB
• ADC conversion: 8 Bit
• Color Depth: 1 Bit; 4 Bit; 8 Bit; 24 Bit
• Exposure Time: 0.14 msec - 2 sec
• Binning: 1x1; 2x2; 4x4
• IR filter: 380-650 nm (IR-cut filter)
• Camera power: PC USB
• C-mount: YES
• Accessories included: C-mount adapter, software  for image capture and analysis, eyepiece optical adapter, calibration slide
