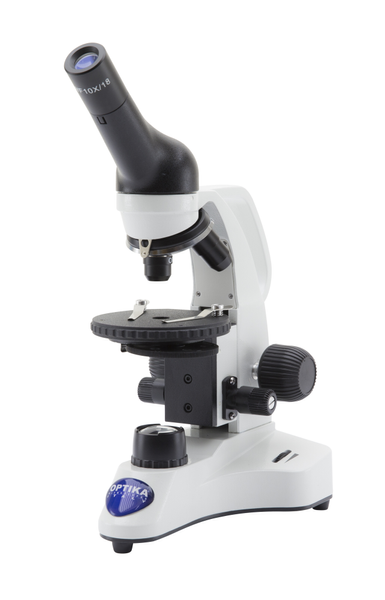

OPTIKA Monocular Microscope B-20R

Function and Applications

Cordless simple microscope equipped with efficient LED illumination with rechargeable batteries. Comfortable handle makes this model ideal for the youngest students.

Observation mode: Brightfield.

Head: Monocular, 45° inclined; 360° rotating.

Eyepiece: WF10x/18 mm, secured by screw.

Nosepiece: Triple ball bearings revolving nosepiece.

Objectives:

- Achromatic 4x/0.10, with anti-fungus treatment

- Achromatic 10x/0.25, with anti-fungus treatment

- Achromatic 40x/0.65, with anti-fungus treatment

Specimen stage: X-Y moving and 360° rotating, 90 mm diameter, with sample clips.

Focusing: Separate coarse and fine focusing mechanism with limit stop to prevent the contact between objective and speci-men.

Condenser: Diffusing filter with rotating diaphragm wheel.

Illumination: 0.3 W LED, with light intensity control, rechargeable batteries. Color temperature: 6,300 K. 100-240Vac/5Vdc external power supply.
