Technical data


Digital Multimeter, 2.000 Counts, 600V AC/DC, 10A AC/DC - Manu.-Range

Article no: EAK-P-3335

Function and Applications

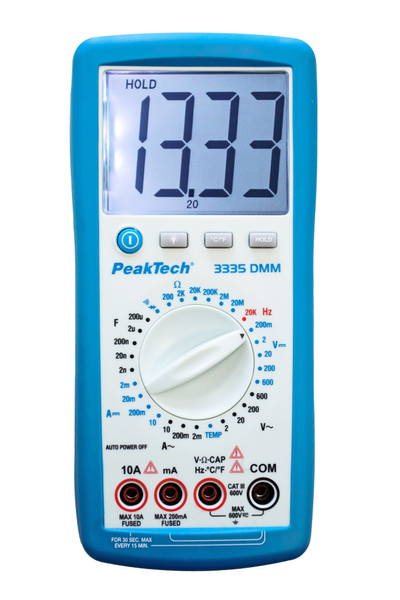

Digital Multimeter ~ 2.000 Counts ~ 600V AC/DC ~ 10A AC/DC - Manu.-Range

3 ½ digits Digital Multimeter with a special design with a 38 mm Jumbo-display for easy reading, even the worst or darkest conditions thanks to its obviously screen size and its LCD backlight. Manual range, auto power off and data hold functions along with all the measuring values like capacitance, temperature, voltage, current, resistance and frequency made this multimeter suitable for educations sector and service.

38 mm LCD display, max. 2000

Auto power off; manual ranging; Data hold function

Continuity- and diode test

Temperature-, Frequency- and Capacitance Test

Safety: EN 61010-1; CAT III 600 V

Accessories: Test leads, Type-K-Thermocouple probe, battery and operation manual
