Technical data

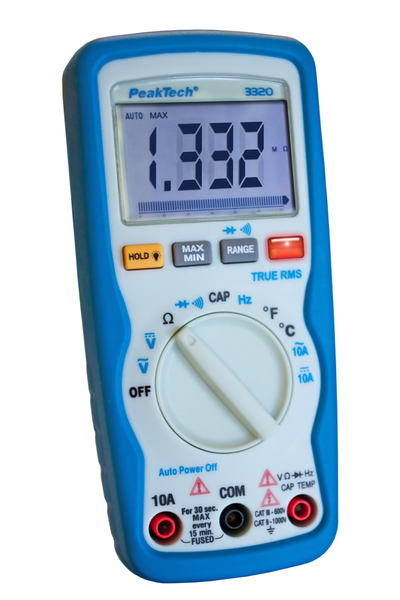

Digital Multimeter ~ 6.000 Counts ~ 600V AC/DC ~ 10A AC/DC with TrueRMS

Article no: EAK-P-3320

Function and Applications

Digital Multimeter ~ 6.000 Counts ~ 600V AC/DC ~ 10A AC/DC with TrueRMS

Multimeter designed as per highest safety standard CAT III 600 V/CAT II 1000 V featuring modern style, integrated protection frame. The 3 5/6 digit LCD-display (max. 6000) with function symbols, 61 segment analogue bargraph and backlight guarantee exact data aquisation. The True RMS AC voltage and current readings, non-contact voltage detector are most important features of this excellent multimeter.

3 5/6 digit, 20 mm LCD-display, max. 6000

Continuity- and diode test

Data Hold, MIN/MAX Hold

Auto- and manual range selection

Auto power off

Safety: EN 61010-1; CAT III 600 V/CAT II 1000 V

Accessories: carrrying case, test leads, type K-temperature probe, temp.-adaptor, battery and operation manual


PHYWE Systeme GmbH & Co. KG
Robert-Bosch-Breite 10 – 37079 Göttingen – Germany
www.phywe.com
