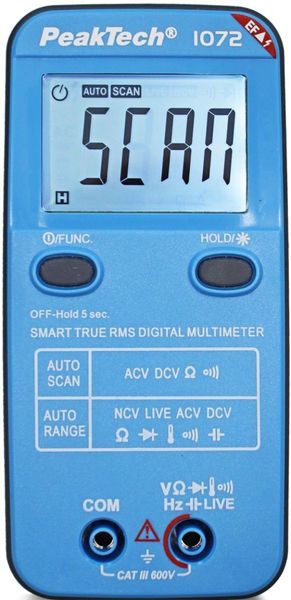

Digital smart multimeter, 600V AC/DC, 40 MΩ, 4kHz, 1mF, -200...1200°C

Function and Applications

Multi-purpose measuring instrument for measuring voltage, current, resistance and temperature for direct and alternating current, especially in student experiments. Thanks to the automatic search of the measuring function, you no longer need a rotary selector switch. The multimeter automatically recognises what is being measured and adjusts itself accordingly.

Benefits

• Robust ceramic fuse for high safety

• Ergonomically designed for students

• Automatic setting of the measurement parameter, no more rotary selector switch required

• Measurement of AC and DC voltage

• Frequency measurement and capacitance measurement

• Resistance measurement, temperature measurement, continuity and diode tester

• Non-contact AC voltage detection (NCV)

• Display changes from blue to red when the measuring ranges are exceeded

• Built-in torch (LED)

Equipment and Technical Data

• Measurement ranges:
• DC voltage: 0...600 V
• AC voltage: 0...600 V~
• Resistance: 0...40 MOhm
• Frequency: 0 ... 4 kHz
• Capacitance: 0... 1 mF
• Temperature: -200°C...1200°C
• Supply voltage:2 × 1,5 V AAA batteries
• Dimensions H × W × D (mm):130 × 63 × 35
• Mass: 110 g
• 4 mm safety sockets
• 3 1/2-digit LCD with 4000 counts
• Backlit (blue, red when measuring range is exceeded)

• Automatic range selection

• Continuity test and diode test function

• Live test and NCV voltage tester

• Automatic switch-off and battery status indicator

• Sturdy ABS plastic housing

• Complies with safety standards: EN 61010-1, CAT III 600 V

• Accessories included: AAA batteries, test leads, thermocouple, operating instructions
