Technical data

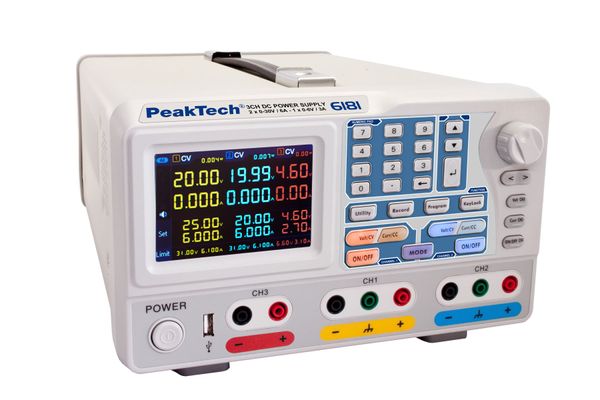

Programmable DC power supply, 0...30 V, 0...6 A

Article no: EAK-P-6181

Function and Applications

The innovative PeakTech 6181 power supply unit with colour TFT display combines the advantages of a linear-regulated laboratory power supply unit with the remote control options previously reserved for switching power supply units. It is operated via the graphical menu navigation and enables uncomplicated control and programming of the many functions. The device can also be completely remote-controlled using the PC software supplied. It is possible to increase the output voltage or output current values by connecting the two independent channels in series or parallel. A plus/minus connection of the outputs is also possible. The technology used and the many functions make this device ideal for use with HF-sensitive components and circuit boards.

Equipment and Technical Data

Dual-channel programmable DC power supply with the following specifications:

  • Channels: 2 CH, independent of each other

  • Output voltage: 0...30 V DC

  • Output current: 0...6 A

  • Additional adjustable output: 0... 6 V DC / 0...3 A DC

  • Outputs serial, parallel or plus/minus switchable

  • Recording of output values to USB memory

  • High-precision resolution of 1 mV and 1 mA

  • 4-inch colour LCD (Liquid Crystal Display)

  • Graphical menu navigation

  • Resolution: 480 (horizontal) x 320 (vertical) pixels

  • Colours: 65536 colours, TFT screen

  • Input voltage: 230 VAC, 50/60 Hz

  • Safety: Overcurrent and voltage protection, fuse: 250V/F5A

  • Fan cooling (speed dependent on load)

  • Interfaces: USB host, USB device, LAN, RS-232

  • Dimensions: 250mm x 158mm x 358 mm

  • Weight: 12 kg

  • Accessories included: Windows software, power cable, USB interface cable, operating instructions
