Technical data

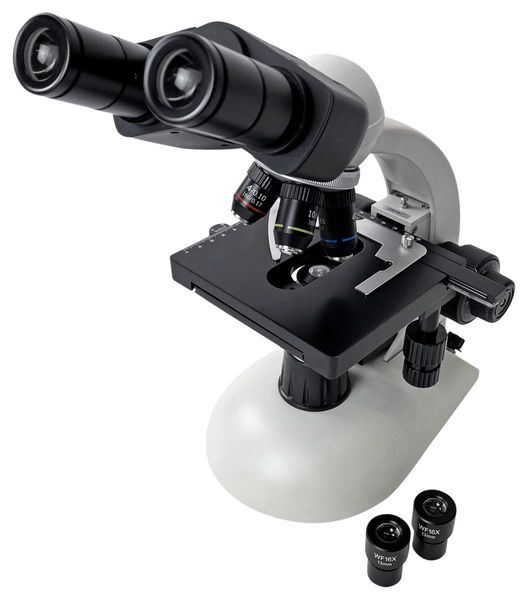

PHYWE Binocular student microscope MIC-121A, with 16x eyepieces, 640x, mechanical stage

Article no: MIC-121A640

Function and Applications

Modern binocular student microscope, 400x magnification as well as 640x magnification when using the 16x eyepieces which are part of the scope of delivery as well, with mechanical stage, LED illumination and rechargeable battery

Benefits

Ideal to purchase in bulk, for equipping microscopy classes and lab courses
640x magnification
Mechanical stage
Long-life and very bright LED illumination
Resists to tilting on the table

Equipment and Technical Data

Binocular head with eyepieces WF10x/18 mm, high eye point
Set of 2 eyepieces WF16x/13 mm
Achromatic objectives 4x, 10x, 40x (S)
Nosepiece for 4 objectives with click stops
Mechanical stage: size 140 x 130 mm, moving range 78 x 30 mm
Coaxial fine and coarse focussing with markings on fine focussing
Illumination: 3 W LED (color temperature 5000 K), adjustable
Condensor: Abbe N.A. 1.25 with iris diaphragm
Integrated power supply 100…240 V, 50/60 Hz
Rechargeable battery for off-the-grid operation
Includes dust cover
Dimensions: 38 cm x 21 cm x 23 cm (H x W x L)
Weight: 5.5 kg

Scope of delivery

PHYWE Binocular student microscope MIC-121A, 400x, mechanical stage	MIC-121A	1
Eyepieces WF 16x/13mm, for MIC-100 series, 1 pair	MIC-16X	1

Necessary accessories

Spare eyepiece WF 10x/18mm, for MIC-100 series, 1 piece

MIC-10X

Recommended accessories

Objective 100x, N.A. 1.25, achromatic, for MIC-100 series	MIC-100X
Eyepiece WF 10x/18mm with micrometer scale, for MIC-100 series	MIC-10M
