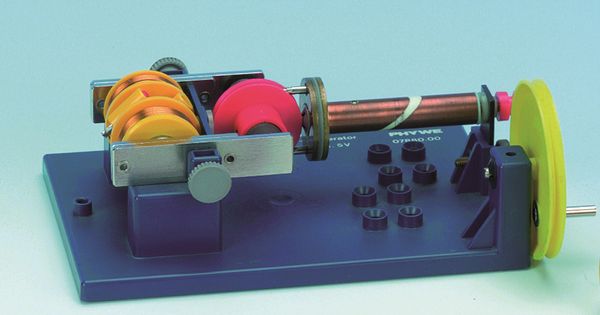

Electric motor/ Generator, EMG

Function and Applications
This device allows to set up different function models:

• direct current motor with permanent stator magnets and rotating electromagnets
• alternating current synchronous motor
• series-wound motor
• shunt motor
• alternating current generator
• direct current generator
• transformer.

Equipment and technical data

• The system contains following parts: base plate, two pole pieces, permanent magnet, two coils, iron core, axle with current inversion, bearing carrier, two brush springs, brass driving axle, driving belt.
• base plate (mm): 163 x 113
