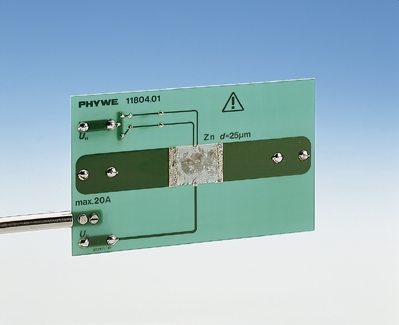

Hall effect, Zn, carrier board

Function and Applications

To demonstrate the abnormal Hall effect of zinc.

Equipment and technical data

• Without heating and thermo couple.
• The lateral 4 mm outwards leading sockets allow for easy holding between the pole pieces of an electromagnet (e.g. iron core 06501.00 with pole pieces 06489.00).
• Holding rod.
• Sample zink.
• Sample thickness: 25 µm.
• Sample surface format meanders: 25 mm × 25 mm.
•  max. sample current: 20 A.
• Voltage compens. spindle potentiometer.
• Board dimensions (mm): 160 × 100.
