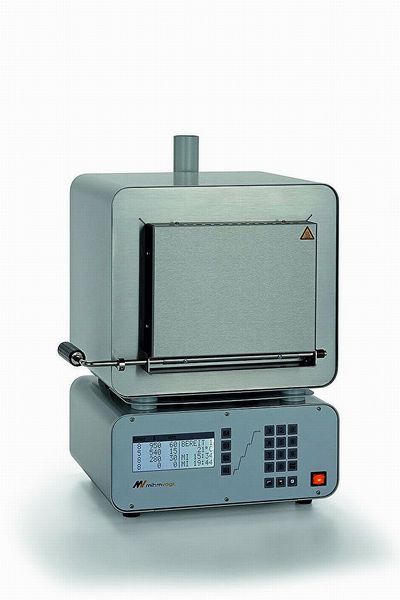

Laboratory Furnace, 1150°C

Function and Applications

Laboratory furnace for annealing, baking, melting. For ceramic, metal and cement processing etc. up to 1150 °C.

Benefits

• Easy to program laboratory furnace with up to 30 programs, also for cold casting programs with a setback stage. Short texts can be stored as well.
• All data of the four stages of a program are clearly shown in the display.
• Individually adjustable heating rates between 1 - 30 °C/min. -Pouring time function with automatic start time calculation.
• The shut-off temperatures for directly connected catalyst/steam exhaust or an exhaust hood can be programmed.

Equipment and technical data

• External dimensions (W x H x D): 400 x 480 x 400 mm Chamber space (W x H x D): 150 x 100 x 170 mm
• Space for: 4 casting muffles size 6
• Temperature max.: 1,150 °C
• Power: 1.6 kW
• Weight: 31 kg
