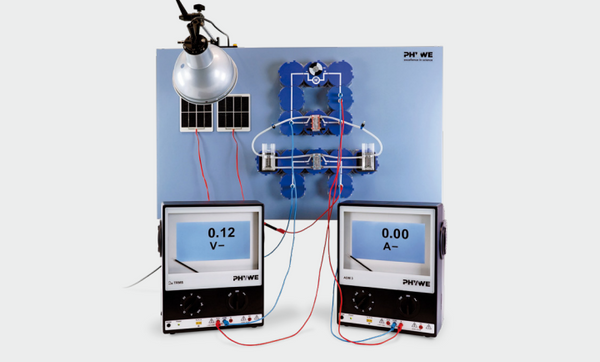

Generating electrical energy with a PEM fuel cell / solar hydrogen system with ADM3 Principle A fuel cell is needed to use the gases produced during electrolysis. In the first part of the experiment, a qualitative investigation will be carried out to determine how an engine can be operated with the solar hydrogen system and whether the gases contained in the air are sufficient for this purpose. In the second part of the experiment, a quantitative investigation of the system is to follow. Benefits - Part of a system solution - easily expandable for further experiments
- Simple teaching by using the demo board physics
- Clear test execution by using ADM3 multimeters
Scope of delivery |
Connector, straight, module DB
|
09401-01
|
2
| |
Connector, angled, module DB
|
09401-02
|
4
| |
Junction, module DB
|
09401-10
|
2
| |
Motor with indicating disc, 5 V, module DB
|
09469-00
|
1
| |
Solar battery, with cable, connectorsand magnet pads
|
06752-23
|
2
| |
Clamp on holder
|
02164-00
|
1
| |
Double PEM electrolyser, DB
|
09488-00
|
1
| |
Double PEM fuel cell for hydrogen/ oxygen operation and hydrogen/ air operation, DB
|
09486-00
|
1
| |
Gas storage tank (30 cm3) H2/O2
|
06723-01
|
2
| |
Building Block with magnetic pad, DB
|
09490-00
|
2
| |
Metal angle for building block with magnetic pad
|
09491-00
|
2
| |
Connector, angled with socket, module DB
|
09401-12
|
2
| |
Double sockets,1 pair,red a.black
|
07264-00
|
1
| |
PHYWE Demo Physics board with stand
|
02150-00
|
1
| |
Stand rods, stainless steel, various sizes
|
02033-00
|
1
| |
Ceramic lamp socket E27, with reflector, switch and security plug
|
06751-01
|
1
| |
Filament lamp, 220V/120W, with reflector
|
06759-93
|
1
| |
PHYWE Demo Multimeter ADM 3: current, voltage, resistance, temperature
|
13840-00
|
2
| |
Pinchcock, width 10 mm
|
43631-10
|
2
| |
Silicone tubing, various diameters
|
39292-00
|
2
| |
Connector interrupted, module DB
|
09401-04
|
1
|
|
