The series motor (DEMO)

Article no: P1433405

Principle

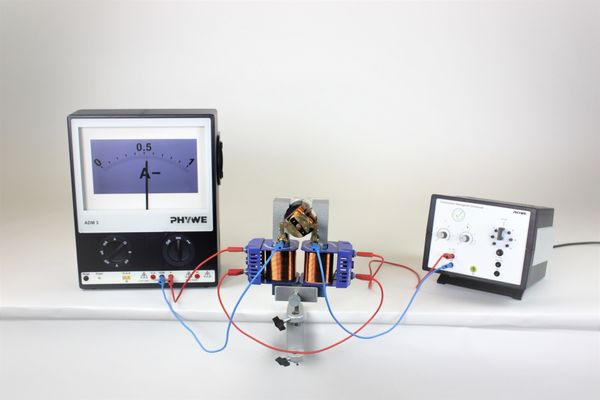

An electromotor can also be operated with an electromagnet as a field magnet. If armature coils and field coils are connected in series, then this is called a series-wound motor. The properties of this motor are studied by observing the direction of rotation and measuring the electric current.

Benefits

Demonstrative experiment due to large instruments
Easy and sturdy setup

Scope of delivery

Bench clamp	02012-00	1
Plate holder, opening width 2 - 35 mm	06509-00	1
Iron core, U-shaped, laminated	06501-00	1
Coil, 300 turns	06513-01	2
Motor set	06550-00	1
Rotor coil, Double-T armature	06554-00	1
Cord pulley	06558-01	1
Connecting cable, 32 A, red, various lengths	07362-01	3
Connecting cable, 32 A, blue, various lengths	07362-04	2
PHYWE Demo Multimeter ADM 3: current, voltage, resistance, temperature	13840-00	1
PHYWE Power supply, universal, analog display DC: 18 V, 5 A / AC: 15 V, 5 A	13503-93	1
