Technical data

Pump plate, complete

Article no: 02668-88

Function and Applications

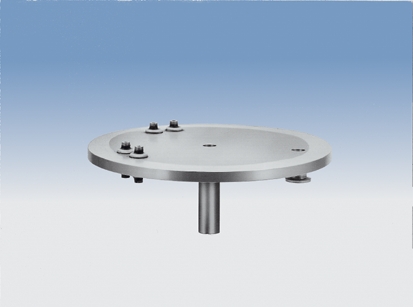

Pump plate, complete.

Equipment and technical data

Consists of the following parts:

pumpplate with electric bushings
supporting rod
Bell jar, with knob and sealing ring
Protection cylinder for bell-jar

and the matching flange components:

T-shaped pipe
centering and sealing ring
air inlet valve
clamping ring
hose nipple

Scope of delivery

Pump plate, aluminum	02668-01	1
Supp.rod f.pump plate IGJ 19/38	02668-05	1
Bell jar, with knob and sealing ring	02668-10	1
Protection cylinder for bell-jar	02668-14	1
T-connection DN 10	02668-13	1
Blind flange DN 10	02668-11	2
Centering and sealing ring DN 10	02668-04	4
Clamping ring DN 10 and DN 16	02668-03	4
Air inlet valve DN 10	02668-06	1
Hose nipple DN 16	02668-15	3
Reduction centering ring DN16 to DN10	02668-16	1
