Stirling Engine Datalogging Module

Function and Applications

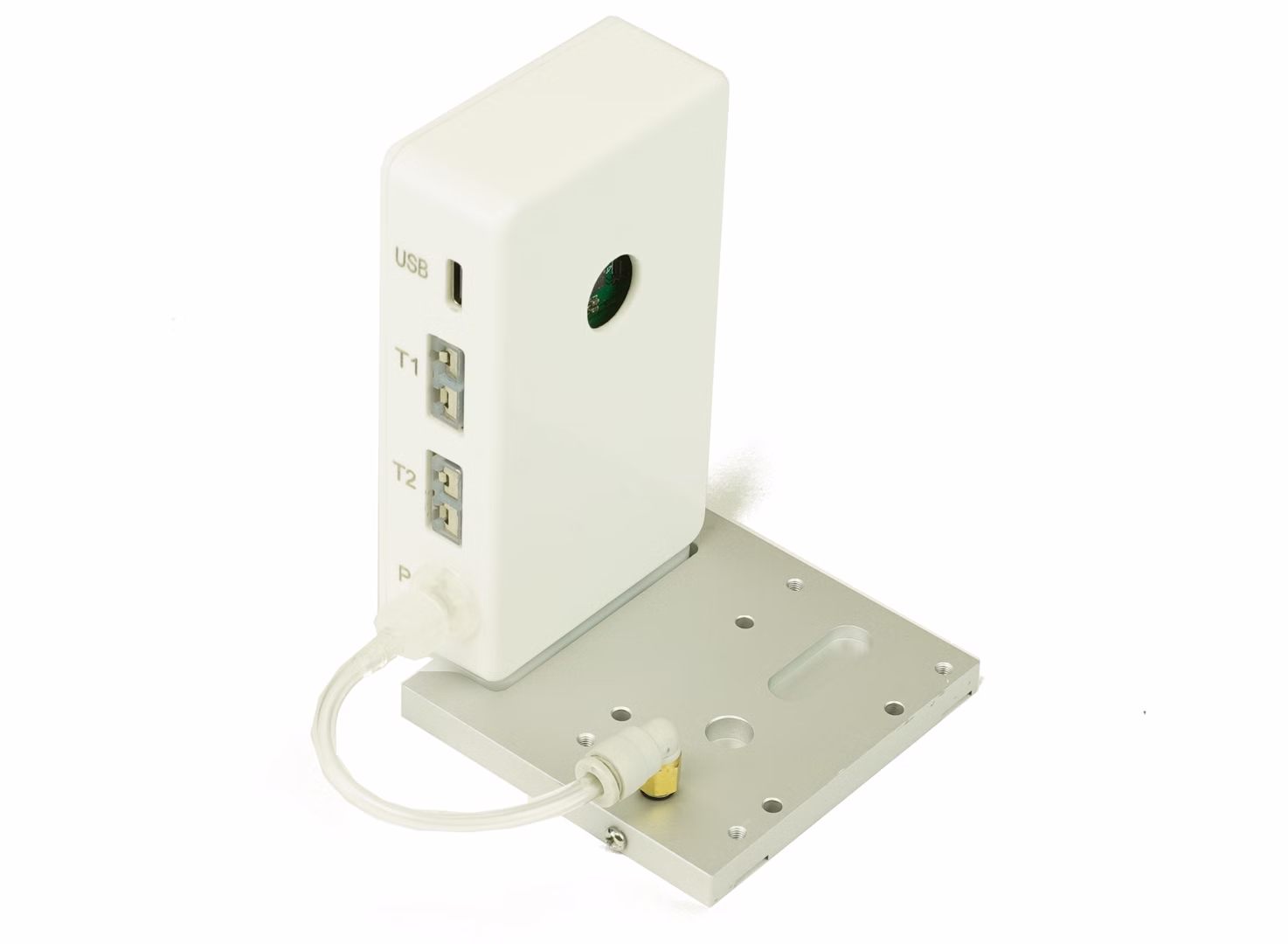

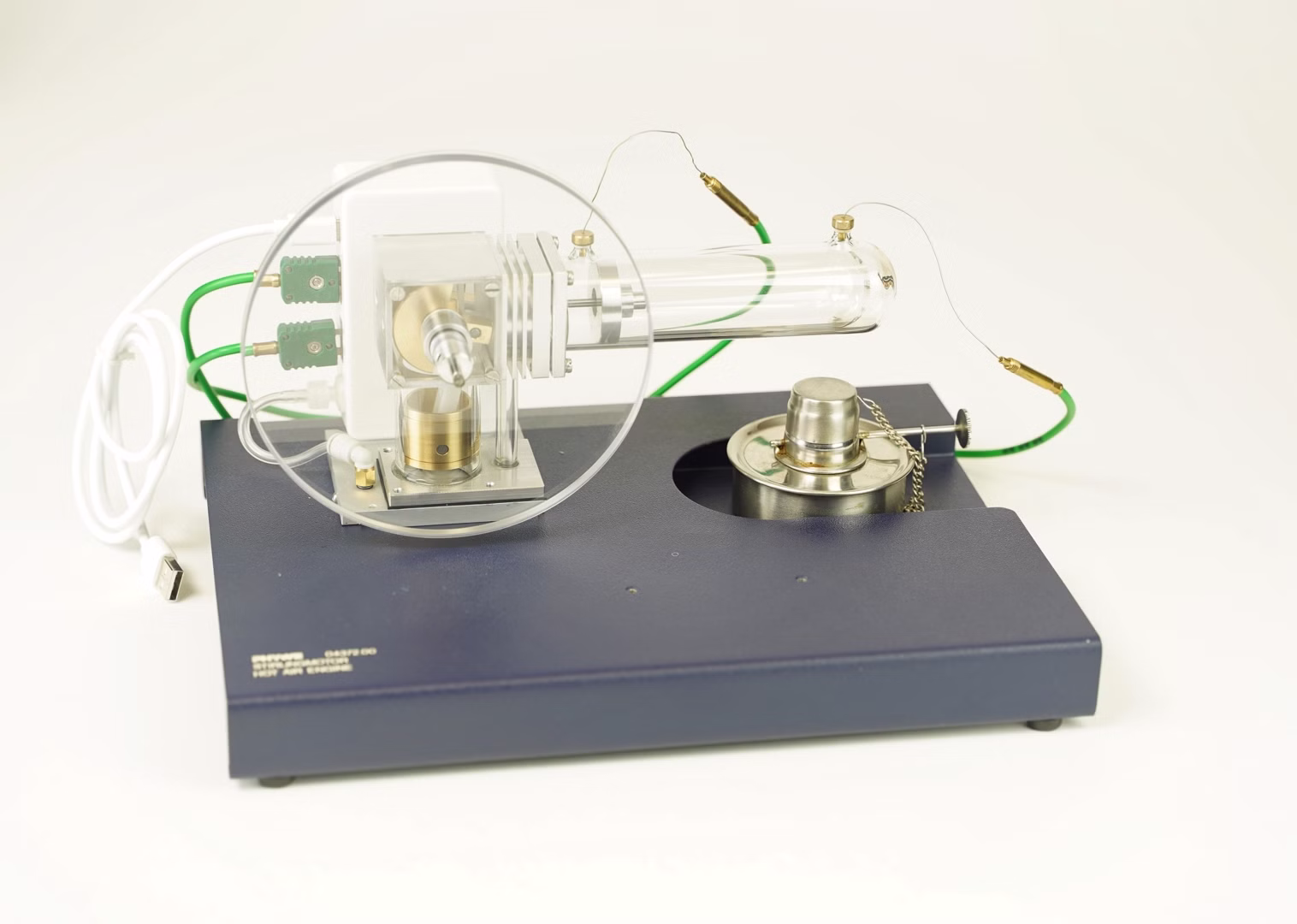

Datalogging module for quantitative digital measurements of the Stirling engine (04372-00).

Benefits

• All relevant quantities are directly measured with a single device:
  • 2x temperature (T1, T2), pressure (p), rotational angle and speed, as well as the calculated volume.
• Enhancing your classical qualitative Stirling engine experiment to allow quantitative measurements is easy.
• Directly view the thermodynamic cycle on your PC.

Equipment and Technical Data

• USB-C 3.0 for Data transfer.

• T1: Type-K temperature sensor for the exact determination of the warm working temperature

  •  Measurement range: -10°C ... 400°C
  •  Resolution: 0.4°C

• T2: Type-K Temperature sensor for the exact determination of the cold working temperature

  • Measurement range: -10°C ... 400°C
  • Resolution: 0.4°C
• p: Pressure sensor to determine the compression inside of the motor.
  •  Measurement range: 0 ... 200 kPa
  •  Resolution: 0.1 kPa
• Contact-free rotation sensor to determine the rotational speed and angle of the motor.
  • Measurement range: 0 ... 2000 rpm
  • Resolution: 0.1°
• V: The volume is given by the construction ans is calculated.
