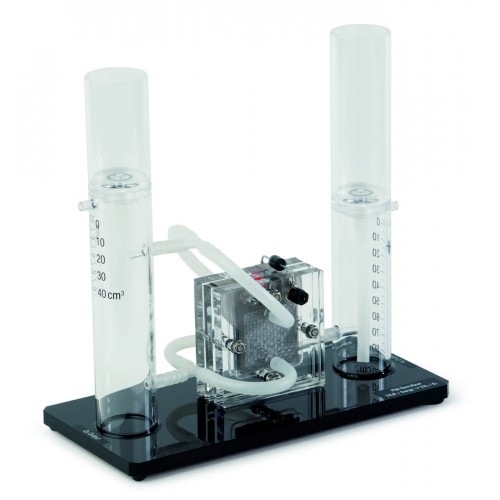

PEM electrolyser H2/O2 65

Article no. 06730-00 | Type: Equipment & Accessories

Pupils , Teachers/Professors

Function and Applications

PEM electrolyser for the production of hydrogen and oxygen through electrolysis from pure water.

Equipment and Technical Data

  • Electrolyser and storage container for distilled water mounted on a stable baseplate.
  • 4-mm connection sockets
  • Electrode surface: 16 cm²
  • Number of electrodes: 2
  • Max. performance (power consumption): 16 W
  • Permissible operating voltage: 0 - 4.0 V DC
  • Permissible operating current: 0 - 4.4 A
  • Gas production H2 at rated power output: 65 cm³/min

  • Gas production O2 at rated power output: 32.5 cm³/min

  • Gas storage volume H2: 80 cm³

  • Gas storage volume O2: 40 cm³

  • Permissible operating pressure: 0 - 20 mbar

  • Size of baseplate (mm): 250 x 120

  • Screw caps included
