Function and Applications

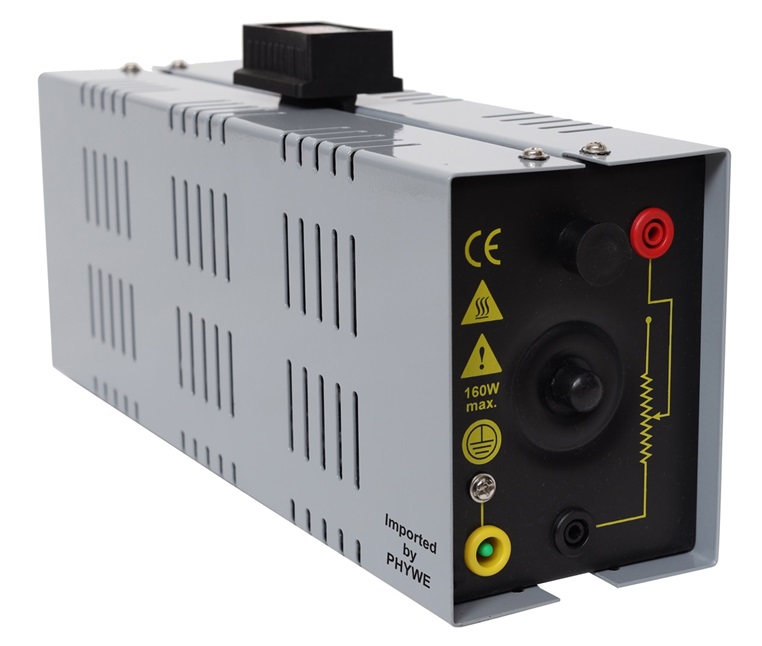

Suitable as protective resistors or voltage dividers.
Equipment and technical data
- Resistance 1 kOhm, ± 10%
- 160 W
- Four 4 mm safety sockets, of which one to earth the casing.
- High load capacity (0,4 A)
- Short-term load: > 220 W (max. 320 W) for max. 15 min
- Safely enclosed in a metal casing.
- Casing dimensions (mm): 330 x 75 x 140.
