Rotational movement due to eddy currents (DEMO) principle of the alternating current meter

Article no. P1434605 | Type: Experiments

20 Minutes
10 Minutes
grades 7-10
medium
Request an offer

Also part of:

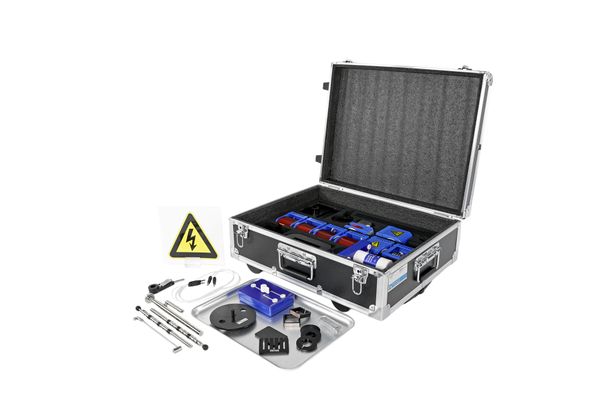

DEMO advanced Physics Electromagnetism 2

Article no. 25574-88 | Type: Set

Delivery time: 1-2 weeks

Principle

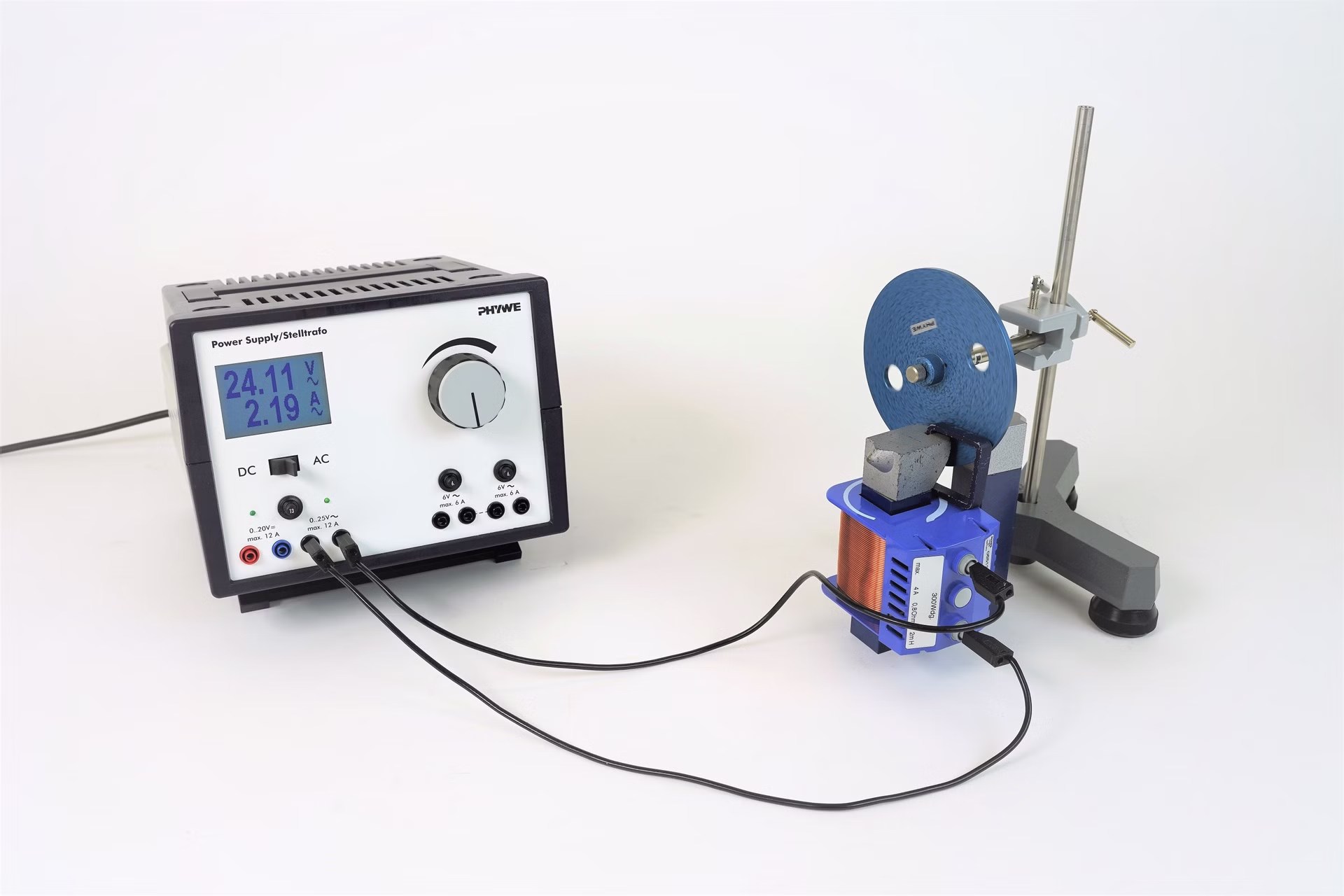

A metal disc rotates on a bearing-mounted shaft in the presence to two out-of-phase alternating magnetic fields. Eddy currents are induced in the disc and forces are imparted onto this current-carrying conductor. Out-of-phase alternating fields also cause the rotational movement in an AC electricity meter.

Benefits

  • Demonstrative experiment due to large instruments
  • Easy and sturdy setup

Name
File name
File size
File type
Digital learning
(en) Experimental instructions
p1434605e .pdf
File size 1.56 Mb
pdf
-
(de) Versuchsbeschreibung
p1434605_de .pdf
File size 1.19 Mb
pdf
-
Rotational movement due to eddy currents (DEMO) principle of the alternating current meter
- .H5P
File size -
.H5P
