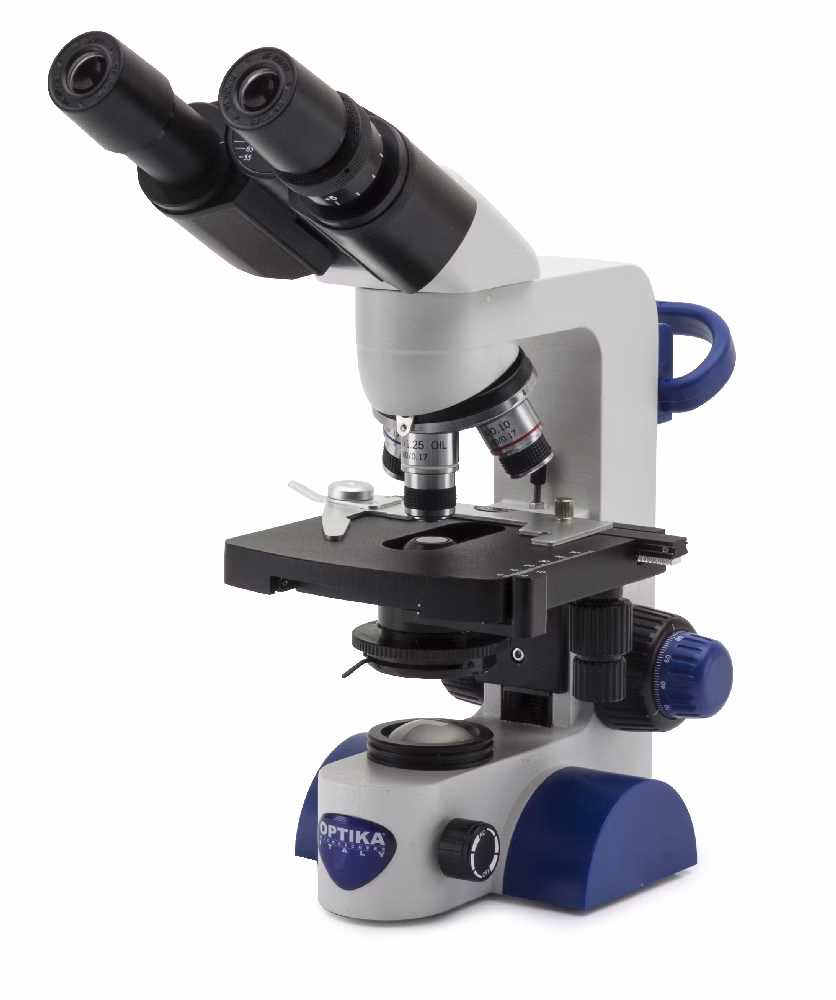

OPTIKA Binocular microscope B-69, 1000x, rechargeable battery, mechanical stage

Function and Applications

Cordless, modern binocular microscope ideal for students and mainly primary schools with achromatic lenses (1000x), FN 18, finite optical system, coaxial focusing, StagErase™ eraseable mechanical stage and 1 W LED illumination with rechargeable batteries. Slim and easy to carry, it is equipped with arm /wrist rest support to reduce the fatigue during use and long lasting LED illumination to provide over 20 years of use

• Head: Binocular, 45° inclined; 360° rotating.
• Eyepiece: WF10x/18 mm, secured by screw.
• Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.
• Objectives: Achromatic 4x/0.10 - Achromatic 10x/0.25 - Achromatic 40x/0.65 - Achromatic 100x/1.25 (oil). All with anti-fungus treatment.
• Specimen stage: StagErase™ eraseable mechanical stage, 125x125mm, 62x24 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm.
• Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
• Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
• Illumination: 1 W LED built-in in the condenser, with brightness control. Color temperature: 6,300 K.
• Multi-plug 100-240Vac/5Vdc external power supply.
• Integrated rechargeable battery.
