Function and Applications

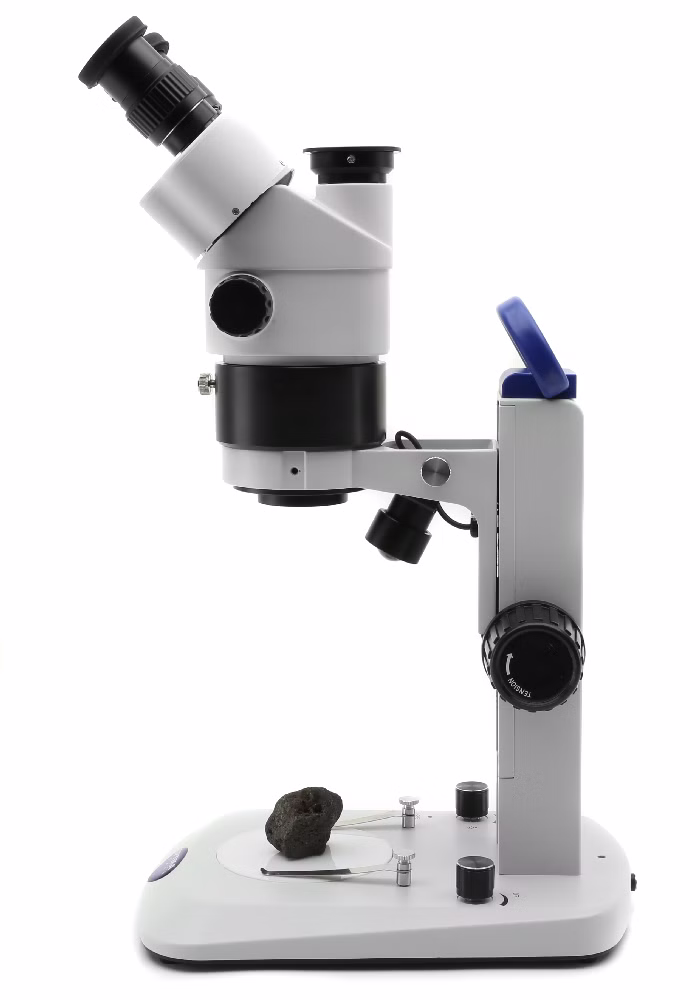

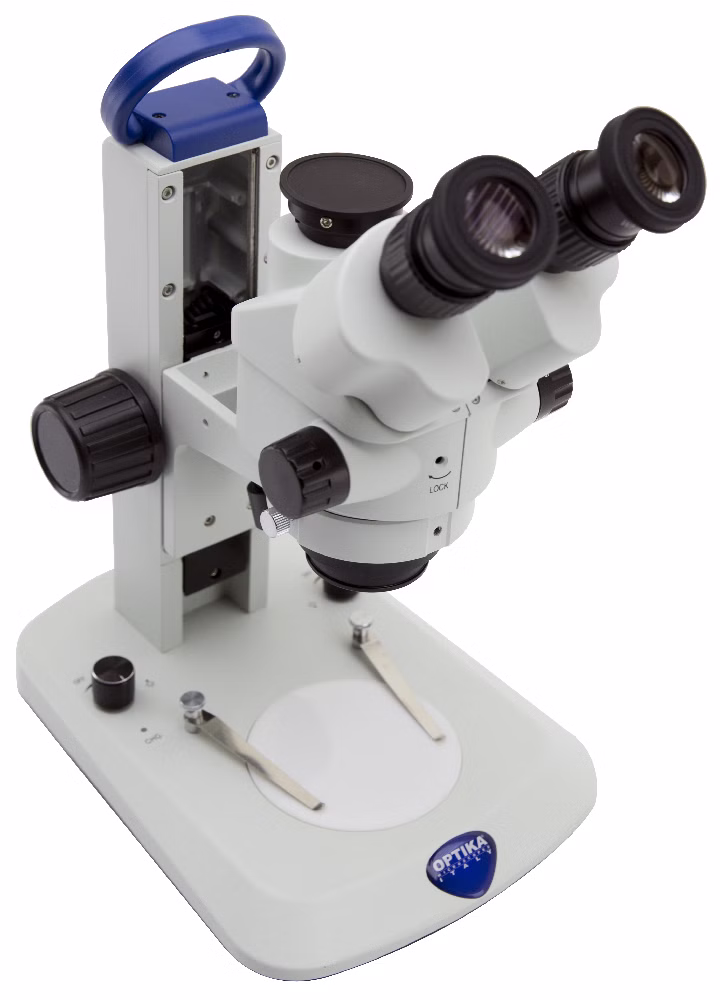

Trinocular stereo microscope with zoom 7x to 45x
Equipment and Technical Data
- Head: Trinocular (split ratio: 50/50), 45° inclined; 360° rotating
- Dioptric adjustment: Both eyepieces
- Eyepieces: WF10x/21 mm, high eyepoint, secured by screw and with rubber cups
- Objective: Parfocal achromatic zoom 0.7x…4.5x (6.43:1 ratio) with anti-fungus treatment
- Working distance: 100 mm
- Stand: High-grade, precision fixed with handle and focus
- Focusing: Rack and pinion focusing mechanism
- Illumination: EcoLED™ swiveling incident and transmitted, with brightness control, rechargeable batteries, color temperature: 6,300 K
- Multi-plug 100-240VAC, 50/60Hz / 5VDC external power supply
