Function and Applications

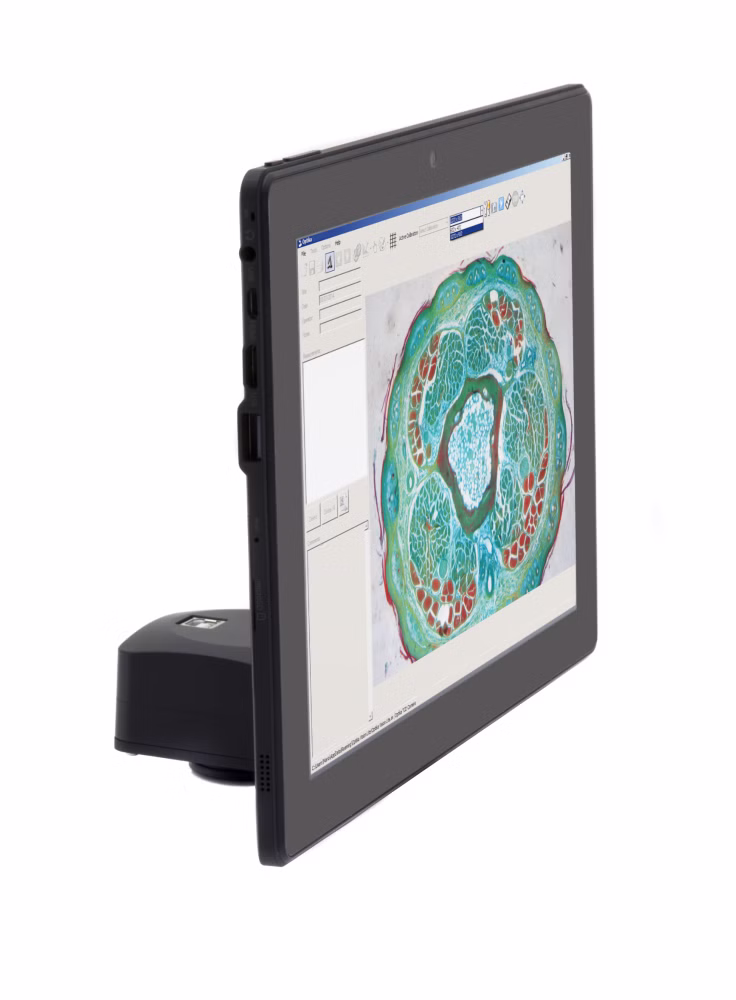

Windows tablet PC with large 10.1" LCD touch screen, combined with a 3.1 MP camera to create the most advanced solution for digital microscopy.
TABLET TECHNICAL SPECIFICATIONS
Model: Tablet 10.8"
Operating System: Windows 10 32-bit
Language: Multilanguages already installed
Image capturing software: OPTIKA Vision lite
CPU: Intel® Atom™ Z3735F, Quad core
CPU speed: 1.44 GHz
Graphics Card: Intel® HD Graphics 3D Accelerator
Memory: Ram 2,048 GB DDR3L
LCD display: LED 10.1" IPS Multi Touch Screen
LCD resolution 1920 x 1280, 16/10 (WXGA)
Storage : HDD 64GB
Network: Wireless, Bluetooth 4.0
Input/output ports: Micro USB-B - USB - Microphone - MicroSD card reader - Mini HDMI - Head-phone
Control Buttons: Auto rotate off, volume control
Battery Technology: Lithium-ion battery, 2x cell
Battery capacity: 8400 mAh
Max load: 15 W
Dimensions & Weight: Thickness 10,5 mm, Height 17,4 cm, Width 25,7 cm, Weight: 720 g
CAMERA TECHNICAL SPECIFICATIONS
Digital camera resolution: 3.1 MP (2048 x 1536)
Signal output: USB 2.0
Sensor Size: 1/2"
Sensor technology: CMOS
Sensor type: Aptina CMOS
Image format: 4/3
Pixel size: 3.2 x 3.2 µm
Frame rate full resolution: 12 fps (2048 x 1536)
Frame rate other resolutions: 45 fps (680 x 510)
Sensitivity: 1 V/lux-second
Signal / noise ratio: 43 dB
Dynamic range: 61 dB
ADC conversion: 8 Bit
Color Depth: 1 Bit ; 4 Bit; 8 Bit; 24 Bit
Exposure Time: 0.244 msec - 2 sec
Binning 1x1; 2x2; 3x3
IR filter 380-650 nm (IR-cut filter)
Camera power PC USB
C-mount: YES
