Function and Applications

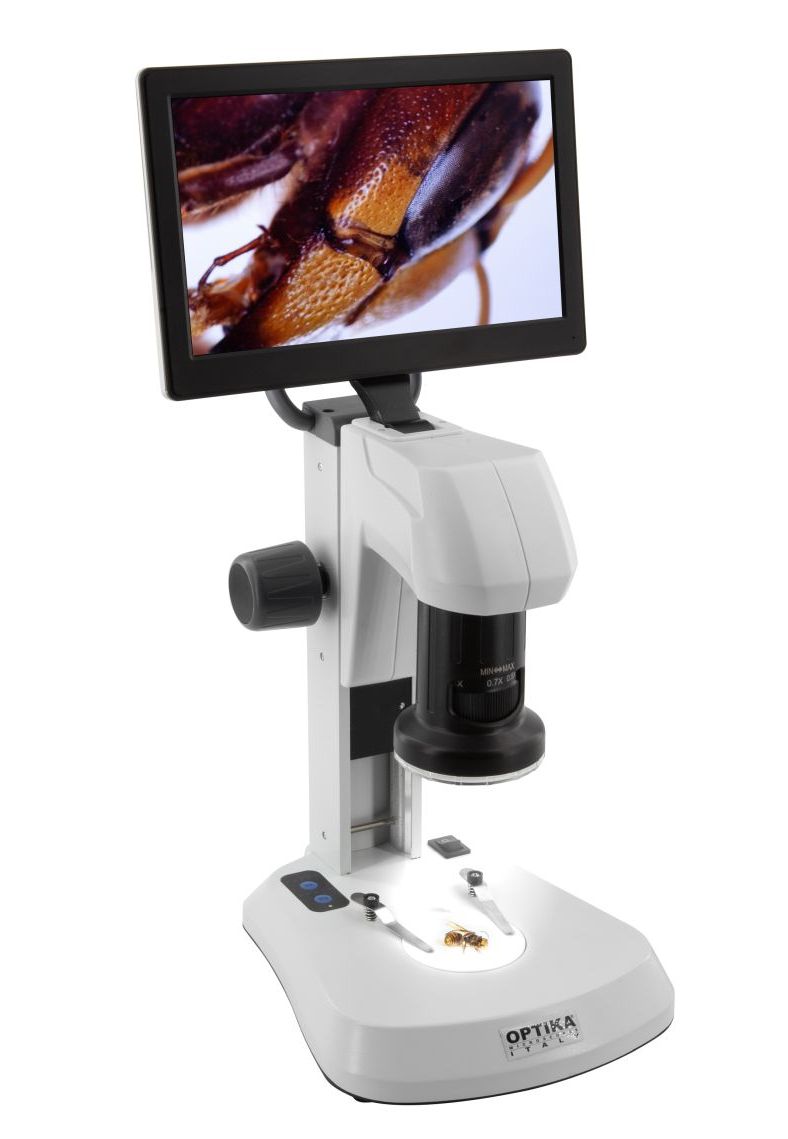

The SFX-85V digital zoom microscope has a built-in 9" monitor so that you can view the object directly on the screen instead through eye pieces. It magnifies three-dimensional objects from 8x to 45x. It is designed to meet the diverse needs of educational settings and industrial applications alike. Featuring a 5 MP built-in camera and tilting/folding 9" monitor with integrated software, this microscope enables users to capture, display and analyse high-quality images and videos seamlessly.
Benefits
- Real-time, high-resolution display of the microscopic image on the monitor
- Also ideal for visually impaired students
- Built-in SD card slot for easy image storage
- Data analysis thanks to integrated software, no computer required
Equipment and Technical Data
Zoom optics: 0.7X to 4.5X
Total magnification on Monitor: 8x to 54x
Camera: 5MP, CMOS
Monitor: tilting/folding 9" screen
Software integrated (live measurement, camera settings, capture images, video recording, archiving..)
Working distance: 100 mm
Stand: High-grade fixed stand with focus and handle.
Focusing: Rack and pinion focusing mechanism
Illumination: incident light: 21 LEDs, 1W in total, transmitted light: 1W LED, touch brightness control.
Accessories included: calibration slide, dust Cover, glass stage plate, black/white plastic stage plate, user manual: download version, SD card: for images and videos storage, mouse
