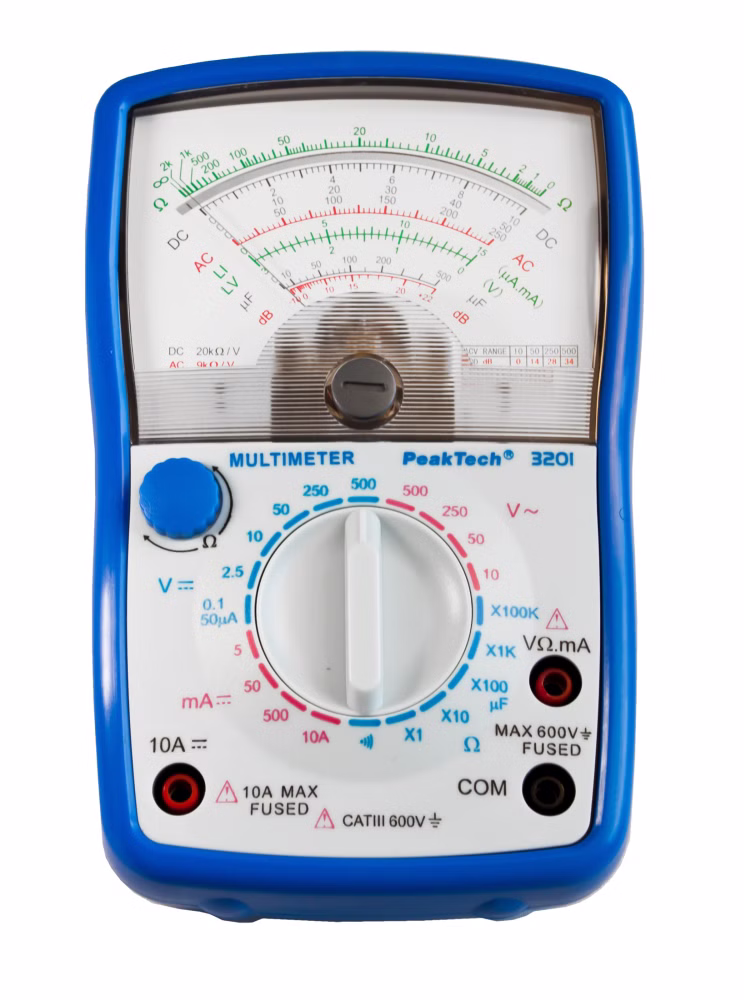

Analog Multimeter, 500 V AC/DC, 10 A DC

Function and Applications

Analog multimeter with large mirror scale for precise measurements with a wide range of measurement functions: AC and DC voltages, DC current, resistance with continuity tester and dB.

Equipment and Technical Data

• Analog mirror scale
• Direct voltage: 0.1V / 2.5V / 10V / 50V / 250V / 500V
• Alternate voltage: 10V / 50V / 250V / 500V
• Direct current: 5mA / 50mA / 500mA / 10A
• Resistance measurement: x1; x10 ; x100; x1K; x100K
• Decibel scale (dB)
• Continuity tester
• Safety: EN-61010-1; CAT III 600 V
• Accessories: Carrying case, test leads, batteries and user manual
• Dimensions: 100 x 155 x 45 mm
• Weight: 370 g
